PRFRM 1 | User manual
DESK user manual.
Setup, positioning, touchscreen controls, Routine Presets, technical specifications and important safety information for PRFRM 1 DESK.
01 | Before first use
Read this first.
Inspect DESK, its stand, handle, cables and accessories before connecting power.
Important safety points
- Use the supplied eye protection and do not stare directly into the LEDs.
- Keep at least 11cm between skin and the light-emitting surface.
- Place DESK on a firm, level surface that can safely support its weight.
- Open the support stand fully and confirm that the panel cannot tip.
- Keep cables away from desk edges, walkways and the support stand.
- Keep DESK dry and never cover its ventilation openings.
- Stop immediately if you experience discomfort or an unexpected reaction.
- Seek professional advice before use if you have been advised to avoid bright or near-infrared light.
02 | Package contents
What’s in the box.
Check all six supplied components before setup.

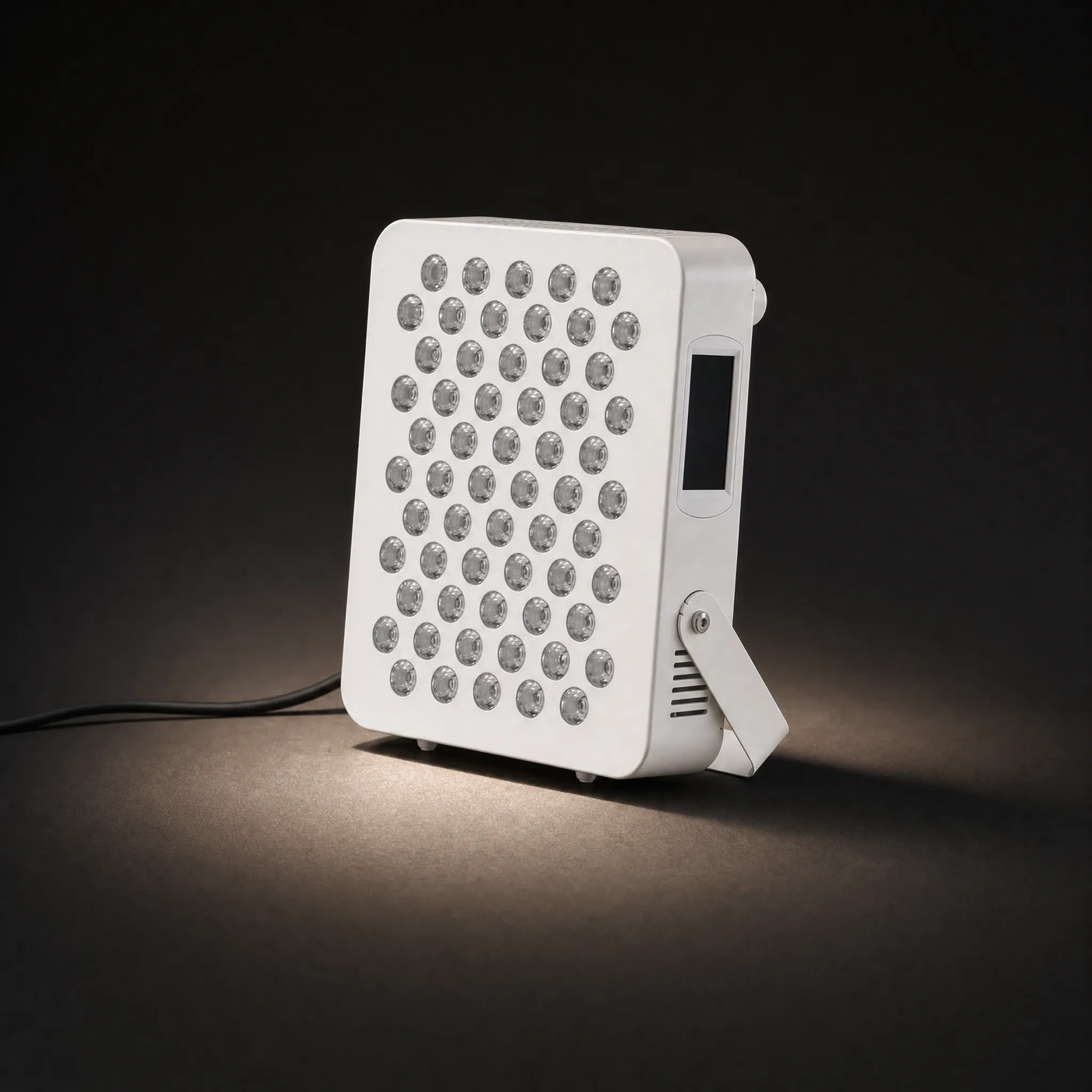

DESK panel
The compact PRFRM 1 DESK panel with touchscreen and adjustable support stand.
Eye protection
Protective eyewear for use during light sessions.
Handle
Carrying handle supplied for the designated mounting points.
Remote control
Controls brightness, time, pulse, groups and Routine Presets.
Power cable
Mains cable supplied for the delivery region.
Patch cable
For an approved compatible connection only; it is not required for normal standalone use.
If anything is missing or damaged: do not assemble or switch on DESK. Contact PRFRM 1 support first.
03 | Setup and positioning
Set up DESK.
DESK is designed for targeted use from a stable tabletop, worktop or similar level surface.
Inspect the panel
Check the enclosure, touchscreen, stand, ventilation slots and cable sockets for damage.
Check the handle
If the handle is supplied separately, secure it only at the designated points. Confirm it is firm before lifting DESK.
Open the stand
Place DESK on a level surface and open the rear support until the panel holds the required angle securely.
Position and connect
Leave ventilation clearance, confirm DESK is switched off, then connect the power cable firmly.
Position DESK safely
Distance
Never place skin closer than 11cm. Starting farther away, such as approximately 30cm, can make positioning and comfort easier to assess.
Stability
Keep the entire stand on the supporting surface. Do not place DESK where it can be pulled down by its cable or knocked from an edge.
04 | Touchscreen operation
Using the touchscreen.
The welcome screen appears for approximately 1.5 seconds before the main menu opens.
| Control | What it does |
|---|---|
| Smart | Opens the six built-in Routine Presets. |
| Custom | Opens RED brightness, NIR brightness, timer and NIR pulse controls. |
| Group | Assigns DESK to remote-control Group 1, 2 or 3. Group 1 is the default. |
| OFF / ON | Starts or stops the selected Smart or Custom programme. |
| OK | Confirms the selected Custom value and returns to the previous screen. |
Custom controls
RED brightness
Adjust the controller’s RED output group from 0% to 100%.
NIR brightness
Adjust the controller’s near-infrared output group from 0% to 100%.
Session timer
Set a duration from 1 to 30 minutes with the slider or plus and minus controls, then select OK.
NIR pulse
Set near-infrared pulse from 0 to 40Hz. Pulse does not apply to the RED output group.
Group selection
Select Group 1, 2 or 3 to match the remote control.
Screen timeout
The screen switches off after approximately two minutes without touch, or 30 seconds after remote use. Touch the screen to wake it.
05 | Routine Presets
Routine Preset settings.
The confirmed DESK Routine Preset settings are shown below.
About the Routine Preset names
These names reproduce or clarify controller labels so that you can identify the correct option. A Routine Preset name does not mean that DESK diagnoses, treats, cures or prevents a medical condition.
| Routine Preset | RED 480 / 630 / 660nm | NIR 810 / 830 / 850 / 1060nm | Time |
|---|---|---|---|
| Joint Care | 100% | 100% | 20 min |
| Face / Eyes | 50% | 50% | 10 min |
| Sleep | 20%-0% | 20%-0% | 30 min |
| Skin | 60% | 60% | 10 min |
| Workout | 100% | 100% | 30 min |
| Mood / Wellness | 80% | 80% | 15 min |
Channel groups: on the seven-wavelength DESK, the touchscreen’s RED control adjusts the visible-light channels at 480, 630 and 660nm together. The NIR control adjusts 810, 830, 850 and 1060nm together. Although the controller uses the label RED, 480nm is a blue visible-light wavelength.
Sleep mode: the confirmed table expresses both RED and NIR as reducing from 20% to 0% during the 30-minute programme.
Pulse settings: the confirmed Routine Preset table does not state pulse values. No pulse figures have been added or assumed.
06 | Remote control
Using the remote.
The remote provides direct access to brightness, time, pulse, Routine Presets and group pairing.
RED and NIR
Selects the brightness group to adjust.
Plus and minus
Changes the selected brightness, time or pulse value.
MENU
Cycles between the adjustable timer and pulse controls.
OK
Confirms Custom settings and pauses or resumes a running Custom programme.
Routine Preset buttons
Selects and switches the corresponding Routine Preset on or off.
Midpoint reminder
A reminder beep sounds when half of the selected programme time has passed.
Pair the remote
Choose a group
Assign DESK to Group 1, 2 or 3 on the touchscreen.
Match the remote
Press the corresponding group number on the remote.
Wait for confirmation
A beep confirms successful pairing.
07 | Product data
Technical specifications.
Specifications for the ordered PRFRM 1 DESK seven-wavelength configuration.
| Wavelengths | 480, 630, 660, 810, 830, 850 and 1060nm |
| LED array | 60 × 5W LEDs |
| Power consumption | 101W |
| Current draw | 0.84A at 120V; 0.47A at 220V |
| Beam angle | 30° |
| Dimensions | Approximately 26.9 × 23 × 6.6cm |
| Weight | Approximately 3.8kg |
| Brightness | 0-100% RED and NIR output groups |
| Timer | 1-30 minutes |
| NIR pulse | 0-40Hz |
| Cooling fans | 1 |
| LED lifespan | 50,000 hours |
| Warranty | 3 years, subject to warranty terms |
| Intended coverage | Targeted use |
Reference irradiance and coverage
| Distance | Irradiance | Approx. coverage |
|---|---|---|
| 15cm | 182mW/cm² | 25 × 20cm |
| 30cm | 101mW/cm² | 35 × 30cm |
| 45cm | 82mW/cm² | 40 × 40cm |
| 60cm | 63mW/cm² | 50 × 50cm |
| 90cm | 42mW/cm² | 71 × 61cm |
These supplier-provided irradiance and coverage figures are reference measurements. Irradiance readings vary with instrument, position, angle and method and should not be treated as guaranteed output or a prescribed dose.
08 | Safety and care
Use and maintain DESK safely.
During use
- Use the supplied eye protection and do not stare into the LEDs.
- Keep at least 11cm between skin and the light-emitting surface.
- Keep the stand fully supported on a firm, level surface.
- Confirm that DESK holds its selected angle before starting.
- Do not lift or reposition DESK while it is operating.
- Do not cover the panel or obstruct ventilation.
- Do not pull, crush or sharply bend the power cable.
- Do not use DESK together with other heating equipment.
- Keep liquids away from DESK and all electrical connections.
- Stop use if you experience discomfort or an unexpected reaction.
Cleaning and storage
- Switch off, unplug and allow DESK to cool before cleaning.
- Do not use cleaning sprays, solvents or abrasive products.
- Wipe with a dry or only lightly damp, soft cloth.
- Never immerse the panel, stand, cable or remote.
- Store in a cool, dry place away from direct sunlight.
- Fold or secure the stand before transporting DESK.
- Use the handle only after confirming it is secure.
- Stop using DESK if the stand or handle becomes loose.
- Do not modify, dismantle or attempt to repair it yourself.
Operating environment
| Operating temperature | -10°C to +45°C |
| Storage temperature | -13°C to +40°C |
| Relative humidity | 30-65% |
| Location | Indoor, dry-location use only |
09 | Troubleshooting
Quick checks.
Switch off and unplug DESK before checking the stand, handle, cables or connections.
DESK will not switch on
Check the wall outlet, mains cable and panel connection. Stop if anything appears damaged.
The remote does not respond
Confirm that DESK and the remote use the same group number.
DESK feels unstable
Unplug it and reposition the stand on a firm, level surface with its full footprint supported.
The selected angle slips
Stop using DESK until the stand and its fixing points have been checked.
The screen has switched off
This can be normal after inactivity. Touch the screen to wake it.
Some LEDs look unlit
Near-infrared wavelengths can be difficult to see. Check the touchscreen instead of staring into the light.
Pulse is unavailable for RED
This is expected. Pulse applies only to the near-infrared output group.
The timer starts with an earlier value
The Custom timer retains the last confirmed value. Open Timer, set the required duration and select OK.
