PRFRM 1 | User manual

BEAM user manual.

Assembly, positioning, touchscreen controls, Routine Presets, technical specifications and important safety information for PRFRM 1 BEAM.

PRFRM 1 BEAM 4 wavelengths Manual version 1.3

Important safety points

Use the supplied eye protection and do not stare directly into the LEDs.
Begin at approximately 30cm. Never position skin closer than 11cm.
Place the base on a level, stable surface and check every connection.
Support the light head before loosening or adjusting a joint.
Keep fingers, hair and loose clothing away from pivot and pinch points.
Stop immediately if you experience discomfort or an unexpected reaction.
Keep BEAM dry and do not cover its ventilation openings.
Seek professional advice before use if you have been advised to avoid bright or near-infrared light.

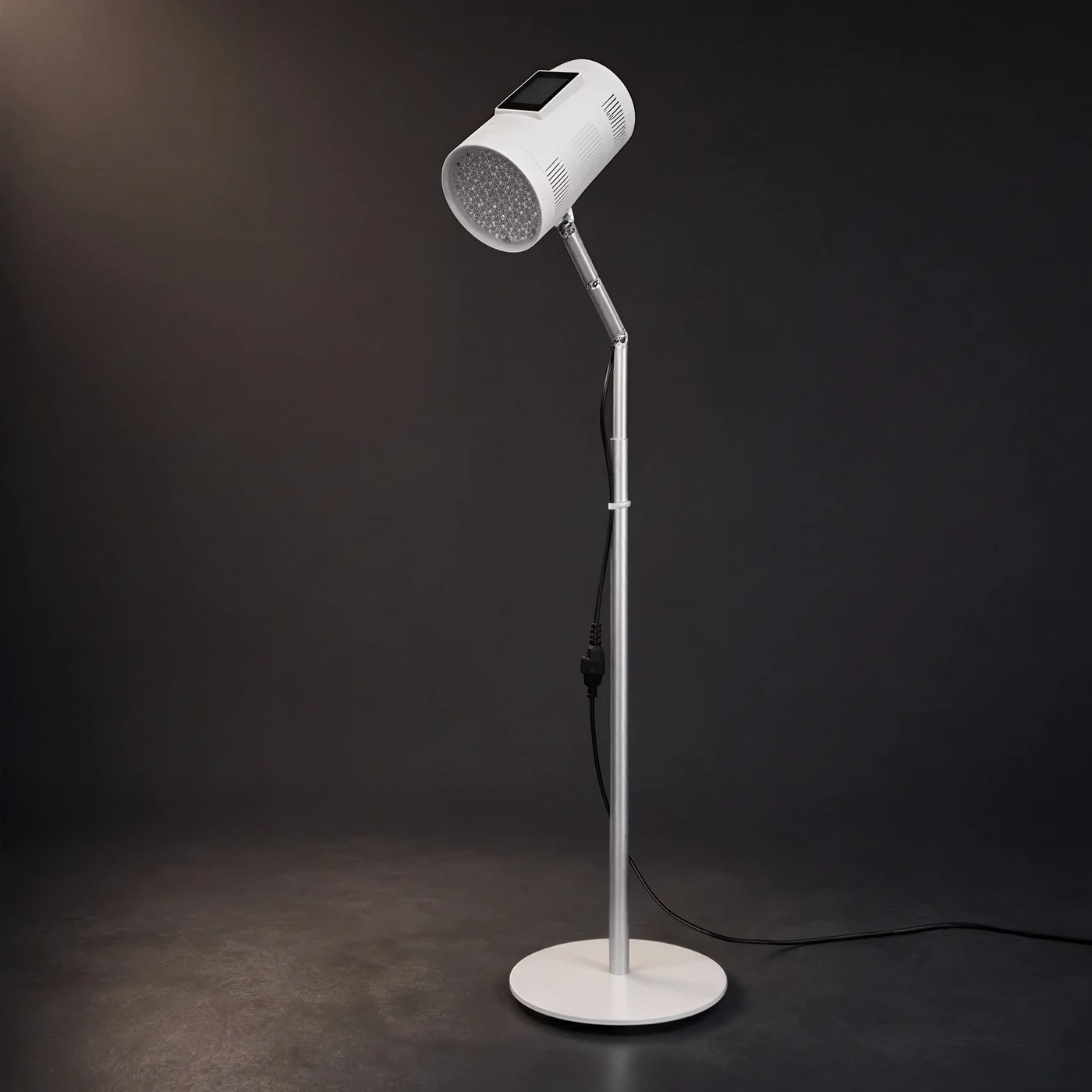

BEAM light head

The PRFRM 1 BEAM light head with integrated touchscreen.

Stand base

The stabilising chassis for the adjustable floor stand.

Support rods × 2

Vertical support components for the adjustable stand.

Screwdriver

Tool supplied for the specified assembly screws.

M3 × 6 screws × 5

Fasteners for securing the relevant stand and light-head parts.

Eye protection

Protective eyewear for use during light sessions.

Power cable

Mains cable supplied for your delivery region.

Remote control

Remote access to brightness, time, pulse, groups and Routine Presets.

If anything is missing or damaged: do not assemble or switch on BEAM. Contact PRFRM 1 support first.

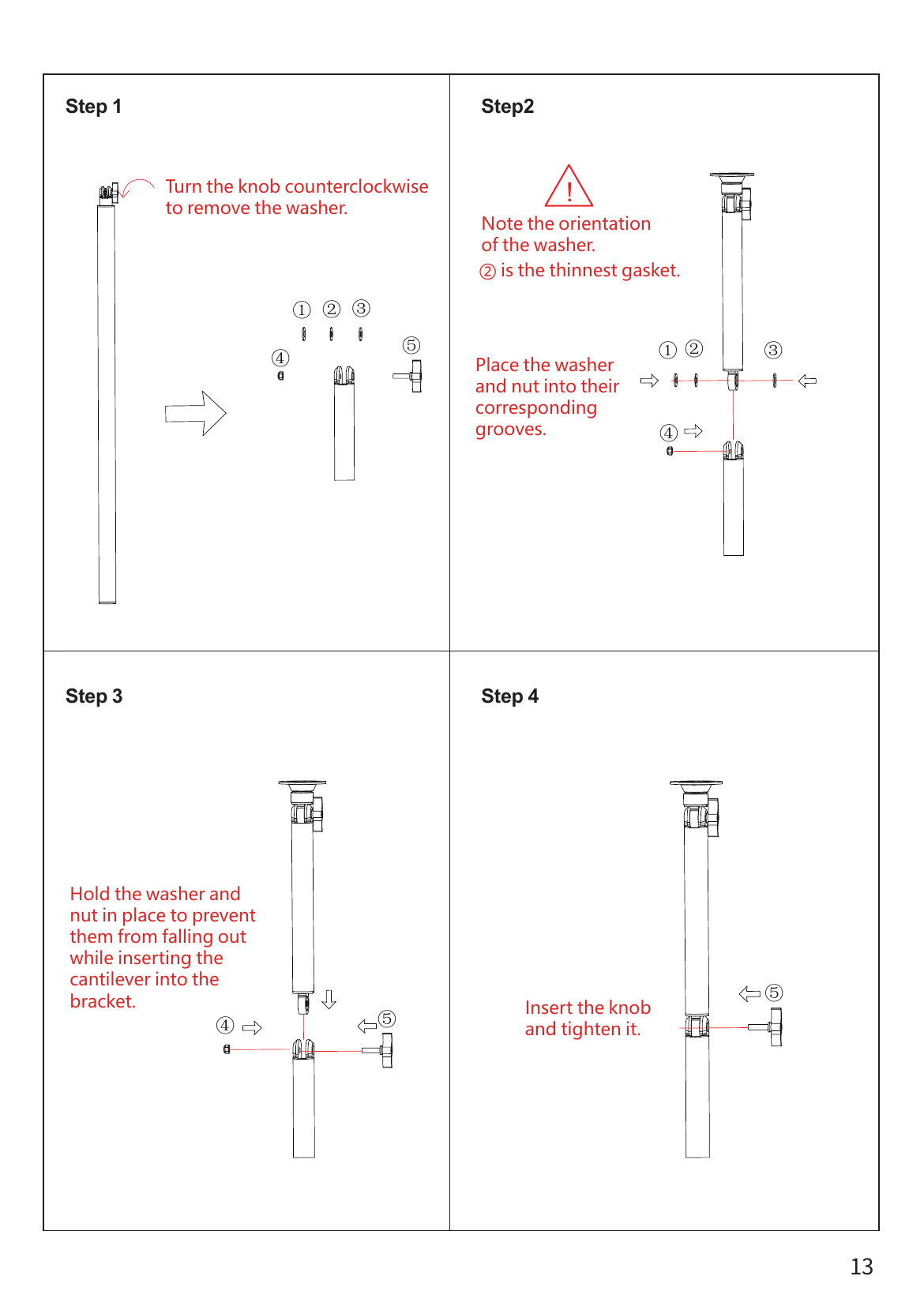

BEAM assembly steps 1 to 4 showing the joint washers, nut and tension knob — Steps 1-4 | Keep the joint washers in the supplied order, insert the arm and refit the knob.

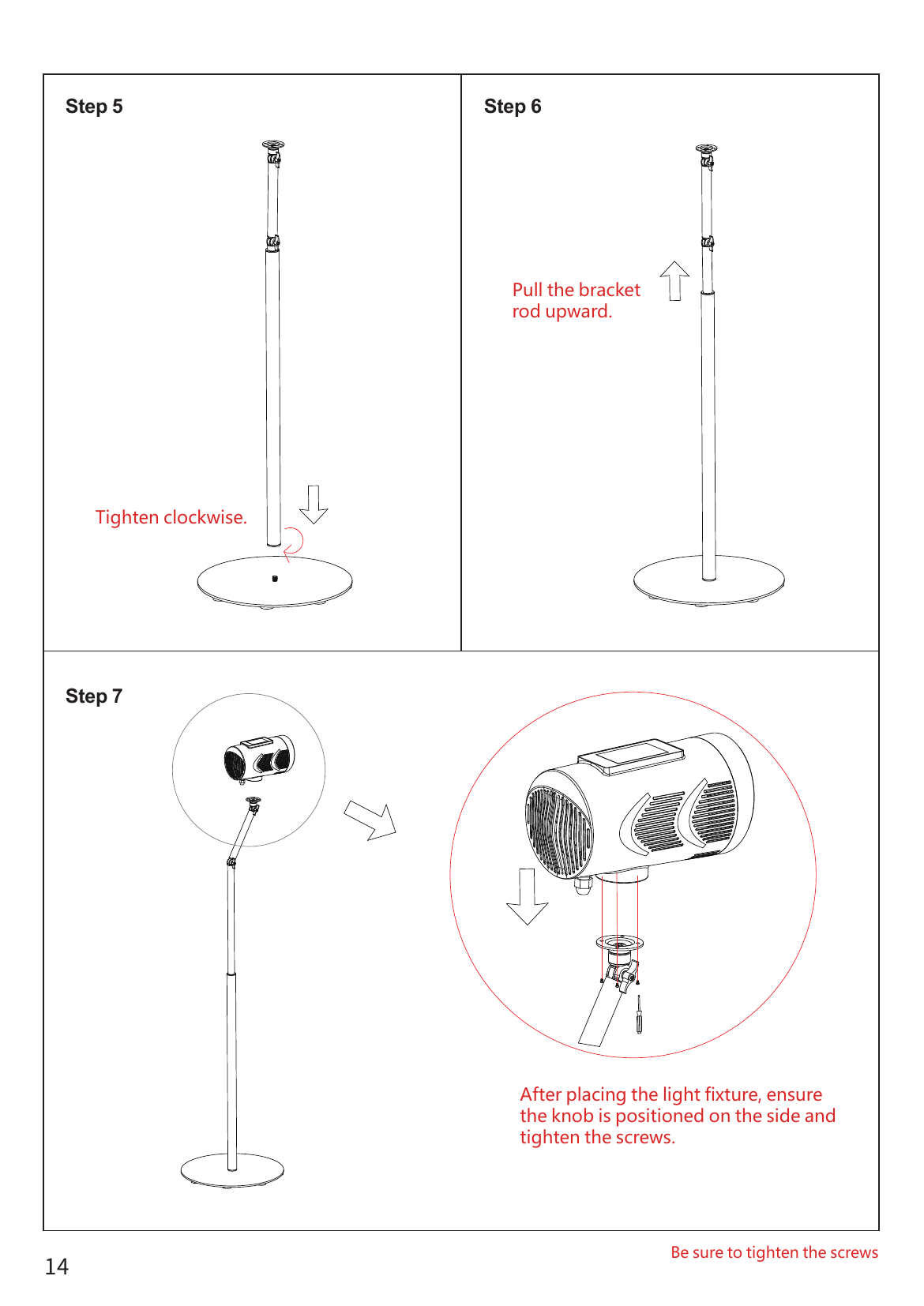

BEAM assembly steps 5 to 7 showing the base, support rod and attachment of the light head — Steps 5-7 | Secure the base, raise the support rod and attach the light head with the control knob positioned to the side.

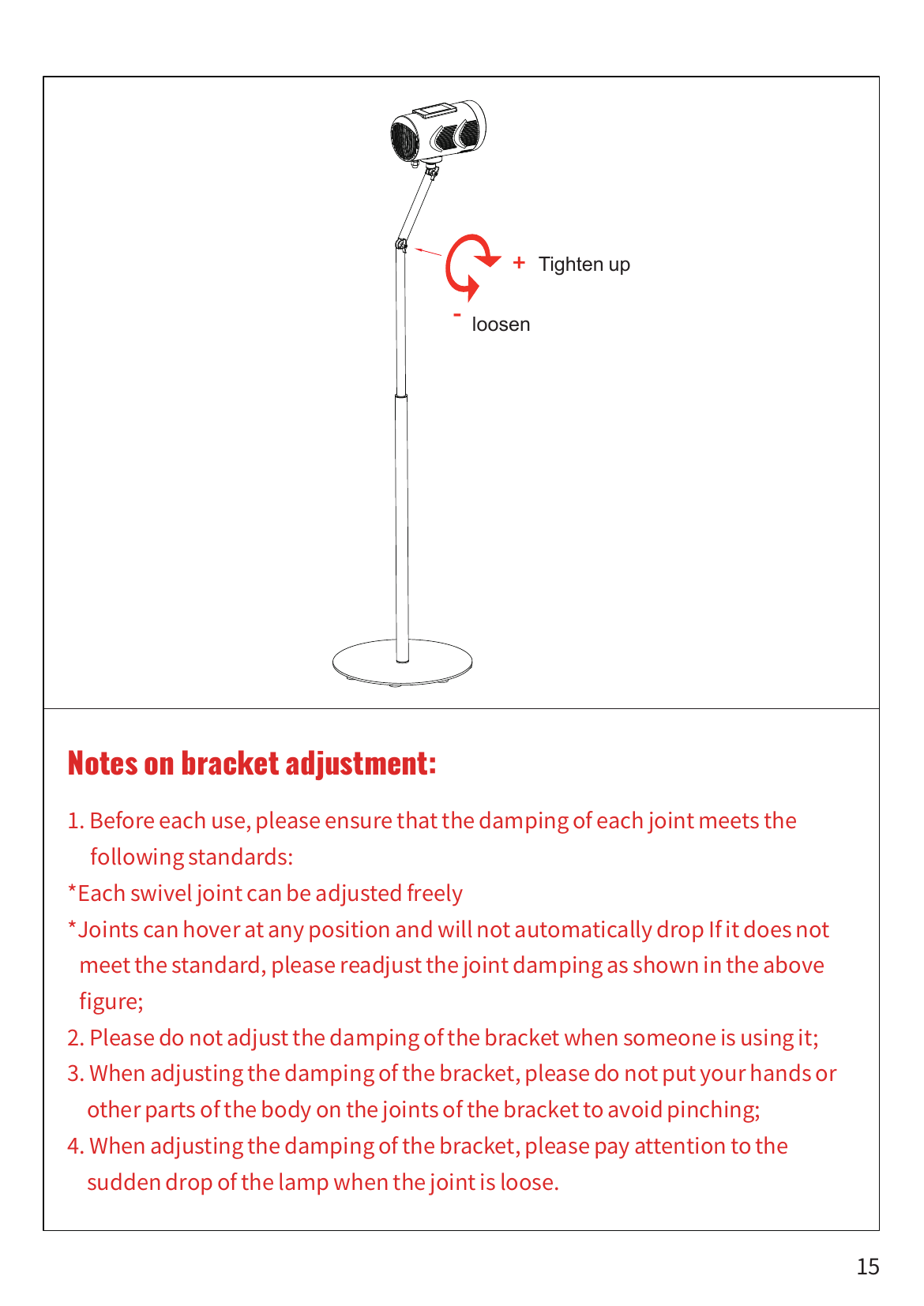

BEAM joint tension diagram showing the tightening and loosening direction — Joint tension | Support the light head before changing joint tension. Tighten only until the head holds its selected position securely.

Prepare the parts

Lay the base, rods, arm, light head, knobs, washers and screws on a clean surface.

Remove the joint knob

Turn the arm-joint knob anticlockwise. Keep the washers and nut in their supplied order.

Position the washers

Place the washers and nut into their corresponding grooves. Washer 2 is the thinnest.

Insert the arm

Hold the washers and nut in position while inserting the adjustable arm into its bracket.

Refit the knob

Insert the joint knob and tighten it clockwise until the arm is secure.

Build the stand

Fit the support rod into the chassis, tighten clockwise, then raise the upper rod.

Fit the light head

Support the light head, place it on the arm with the knob to the side, and tighten every retaining screw.

Complete the checks

Move each joint slowly and confirm that the head holds position without dropping.

Adjust the stand safely

Joint tension

Each joint should move smoothly when deliberately adjusted and hold its selected position without dropping.

If it does not hold, support the head and carefully increase tension before use.

Avoid pinch points

Do not adjust tension while another person is positioned beneath or beside the light head.

Keep hands, fingers, hair and loose clothing away from every pivot.

Connect the power

Confirm that BEAM is switched off. Connect the power cable firmly, then connect it to a suitable wall outlet. Route the cable away from the base, walkways and moving joints.

Control	What it does
Smart	Opens the five built-in Routine Presets and the saved user Preset.
Custom	Opens manual red brightness, NIR brightness, timer and NIR pulse controls.
Group	Assigns BEAM to remote-control Group 1, 2 or 3.
Press and hold Group	Enables or disables Mute mode.
Power control	Switches the selected programme on or off and recalls the last-used programme.
Set	Opens the editable controls for the selected programme or Preset.

Custom controls

Red brightness

Adjust the 660nm red channel between 0% and 100%.

NIR brightness

Adjust the combined 810nm, 850nm and 1060nm output between 0% and 100%.

Session timer

Set a duration between 0 and 30 minutes, then select OK to retain the value.

NIR pulse

Set near-infrared pulse between 0 and 40Hz. Pulse does not apply to the red channel.

Group selection

Select Group 1, 2 or 3. Group 1 is the default.

Start the programme

Confirm the values, return to the programme screen and switch the light output on.

About the Routine Preset names

These names reproduce controller labels so that you can identify the correct option. A Routine Preset name does not mean that the device diagnoses, treats, cures or prevents a medical condition.

Routine Preset	RED 660nm	NIR 810 / 850 / 1060nm	Time
Joint Care	30%	100%	8 min
Skin & Face	50%	50%	10 min
Hair Growth	100%	100%	15 min
Brain	80%	80%	20 min
Muscle Recovery	100%	100%	10 min

Channel groups: each Routine Preset percentage applies to every wavelength within that output group. RED controls the 660nm channel. NIR controls the 810, 850 and 1060nm channels together.

Pulse settings: the confirmed Routine Preset table does not state pulse values. No pulse figures have been added or assumed.

Save your own Preset

Open Preset

Select Smart, scroll to Preset and open it.

Select Set

Select Set to open the brightness, timer and pulse controls.

Enter your values

Choose red brightness, NIR brightness, session duration and NIR pulse.

Save and run

Select SET to save. Next time, select Preset and switch the light output on.

RED

Selects red brightness. Use plus and minus to change the percentage.

NIR

Selects near-infrared brightness. Use plus and minus to change the percentage.

Plus and minus

Changes the selected brightness, time or pulse value.

OK

Starts the selected programme or pauses it when pressed again.

Routine Preset keys

Selects a named Routine Preset or the saved user Preset.

Pair the remote

Choose a group

Assign BEAM to Group 1, 2 or 3 on the touchscreen.

Match the remote

Press the corresponding group number on the remote.

Wait for confirmation

A beep confirms successful pairing.

Wavelengths	660, 810, 850 and 1060nm
LED array	60 × 5W LEDs
LED distribution	27 × 660nm; 14 × 810nm; 14 × 850nm; 5 × 1060nm
Rated power	100W
Operating voltage	AC 100-240V
Optical lens	30°
Weight	5.3kg

Light-head dimensions	Approximately 350 × 145mm
Stand height	Adjustable; allow approximately 1.5m vertical clearance
Brightness	0-100% red and NIR
Timer	0-30 minutes
NIR pulse	0-40Hz
Ingress rating	IP3X
LED lifespan	50,000 hours
Warranty	3 years, subject to warranty terms

Reference irradiance and coverage

Distance	Irradiance	Approx. coverage
11cm	676mW/cm²	10 × 10cm
15cm	555mW/cm²	12 × 12cm
30cm	215mW/cm²	15 × 15cm

These supplier-provided irradiance and coverage figures are reference measurements. Irradiance readings vary with instrument, position, angle, environment and method and should not be treated as guaranteed output or a prescribed dose.

During use

Use the supplied eye protection and do not stare into the LEDs.
Keep at least 11cm between skin and the light-emitting surface.
Place the base on a level, stable surface.
Confirm that every joint holds position before starting.
Support the light head before loosening any joint.
Keep hands and fingers away from pivot and pinch points.
Do not adjust tension while another person is using BEAM.
Do not cover the light head or obstruct ventilation.
Do not pull, crush or sharply bend the power cable.
Stop use if you experience discomfort or an unexpected reaction.

Cleaning and storage

Switch off, unplug and allow BEAM to cool before cleaning.
Do not use cleaning sprays, solvents or abrasive products.
Wipe with a dry or only lightly damp, soft cloth.
Never immerse the light, stand, cable or remote.
Store in a cool, dry place away from direct sunlight.
Store BEAM upright on a level surface.
Check stand fixings and joint tension periodically.
Stop using BEAM if a joint no longer holds position.
Do not modify, dismantle or attempt to repair it yourself.

Operating environment

Operating temperature	-20°C to +45°C
Storage humidity	30-80% relative humidity
Ingress rating	IP3X; indoor dry-location use

BEAM will not switch on

Check the wall outlet, mains cable and light connection. Stop if anything appears damaged.

The remote does not respond

Confirm that BEAM and the remote use the same group number.

The light head drops

Stop using BEAM, support the head and adjust joint tension before restarting.

The stand feels unstable

Unplug BEAM and check the base, rods, arm and every fixing.

There are no control sounds

Press and hold Group to check whether Mute is enabled.

Some LEDs look unlit

Near-infrared wavelengths can be difficult to see. Check the touchscreen instead of staring into the light.

Pulse is unavailable for red

This is expected. Pulse applies only to the near-infrared channels.

The Preset was not retained

Open Preset, choose Set, enter the values and select SET before leaving the screen.

PRFRM 1 products are wellness devices and are not intended to diagnose, treat, cure or prevent disease. Routine Preset names reproduce controller labels for operating guidance only. Stop using the device and seek appropriate professional advice if you experience an adverse reaction.
